L Shape Handrail Bracket — Stainless Steel Wall Mount

• Order includesHandrail in your chosen length; wall brackets (quantity depends on length, shipped loose so you can place them where you need them); self-tapping screws to attach the brackets to the rail; drywall and wood screws for mounting to the wall. Need concrete or masonry anchors? Contact us after ordering and we will send the right ones. Custom measurements are rounded up to the next foot — order the next size up and enter your exact measurement in the personalization field.
• Material, profile and finish vary by product. See the specification table on this page for this item.
• InstallationHandrails are installed 34" to 36" above the floor. 1-1/2" spacing from the wall, 3-1/2" total projection off the wall.
• Length and shipping splitsLengths over 94" ship in two pieces and lengths over 204" ship in three, joined with an easy DIY connector. Contact us with your ZIP code and length if you need a single piece.
• Brackets by length12" to 60" = 2 brackets61" to 96" = 3 brackets97" to 144" = 4 brackets145" to 180" = 5 brackets181" to 216" = 6 brackets217" to 264" = 7 brackets

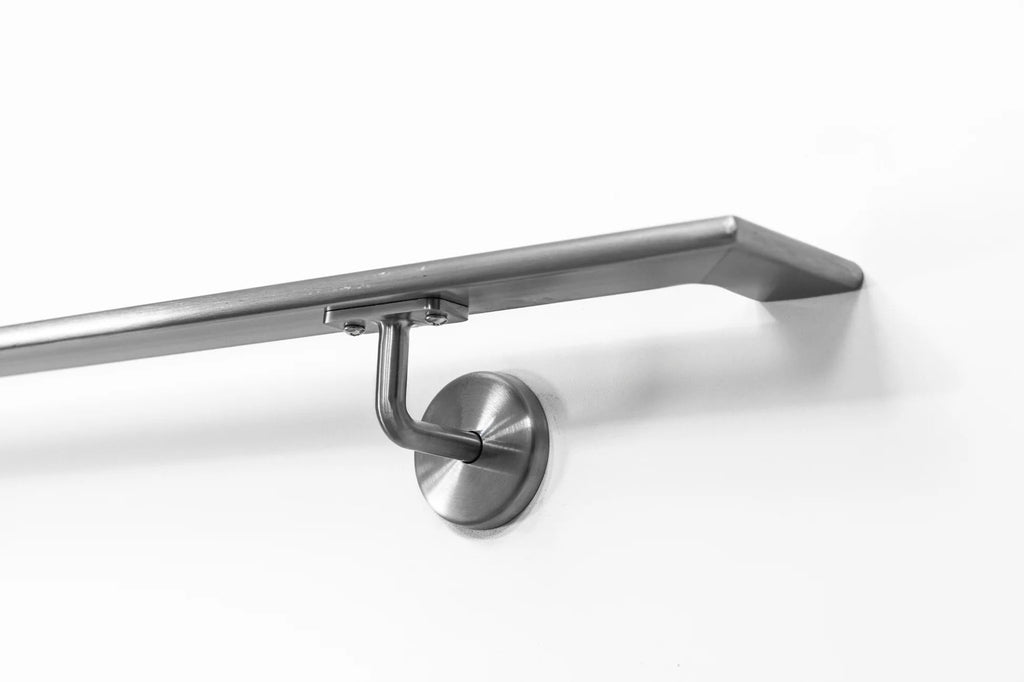

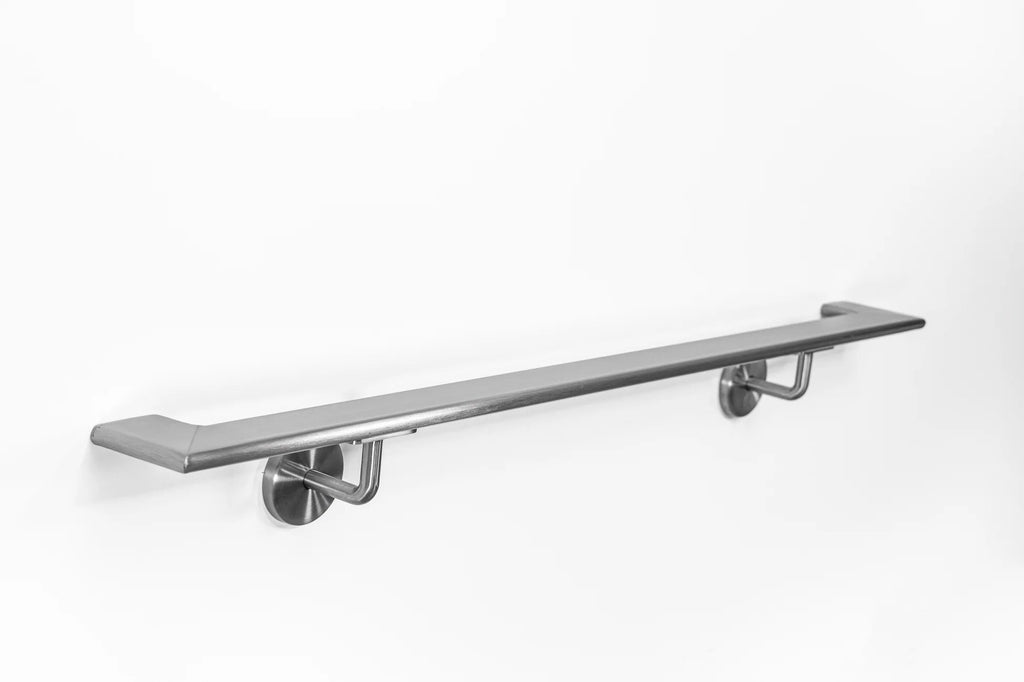

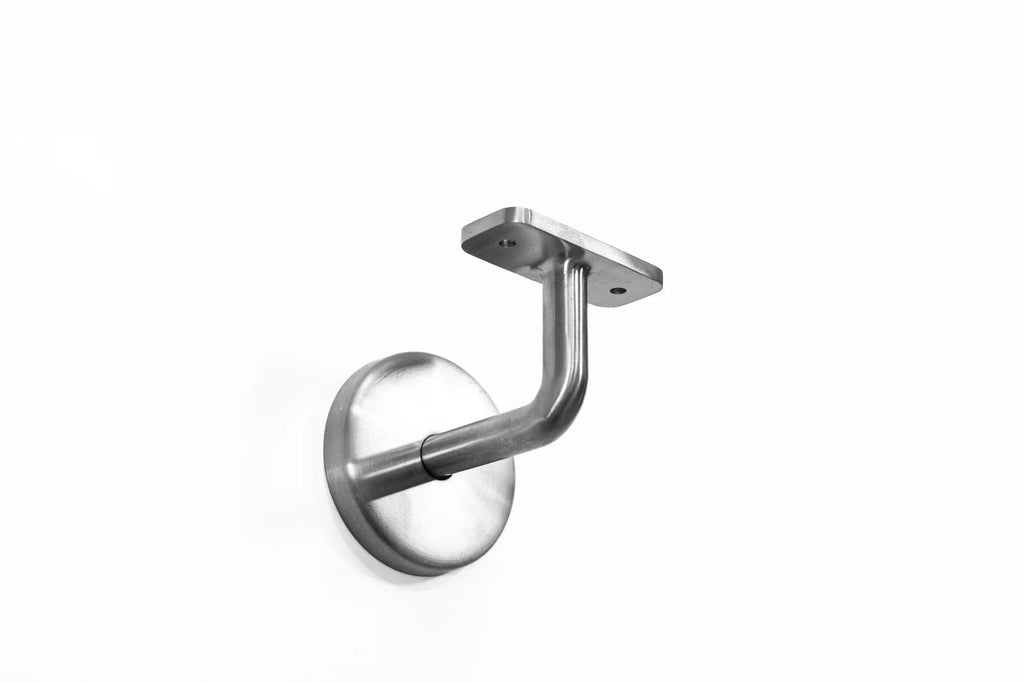

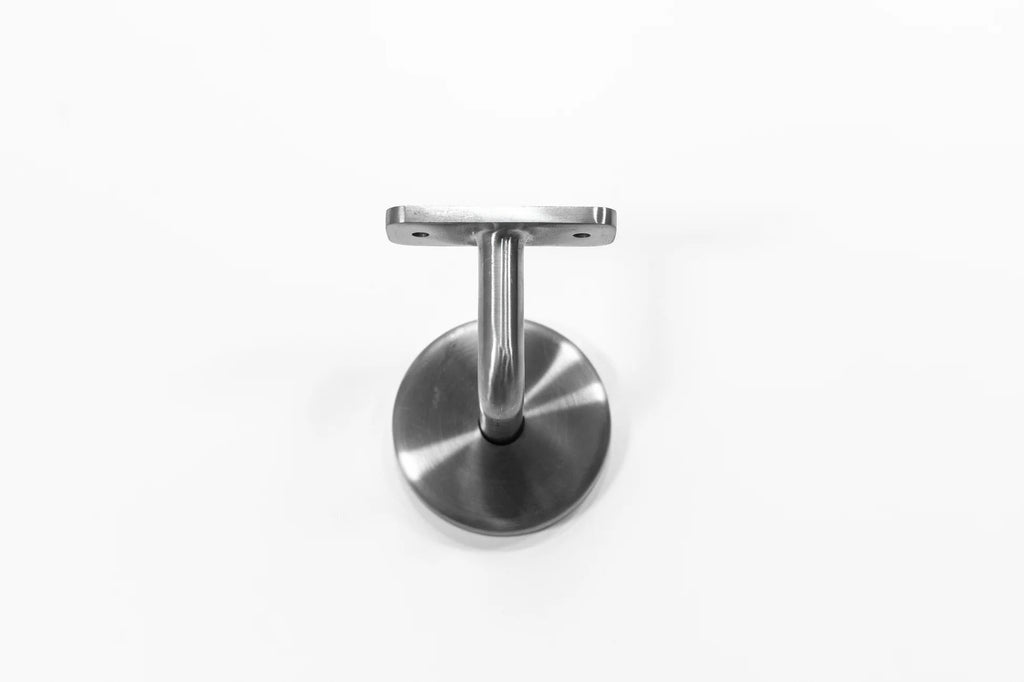

Modern Stainless Steel L Handrail Bracket – Sleek, Safe & Built to Last

Upgrade your stair system with our stainless steel L handrail bracket, made from marine-grade 316 stainless steel for superior durability, corrosion resistance and a clean contemporary finish.

The smooth curved L-shape eliminates sharp edges, which matters on a component people brush past daily. The round wall plate keeps the mounting point discreet.

✔ Key Features & Benefits

• Premium 316 stainless steel construction (marine-grade)
• Modern curved L-shape design with no sharp corners
• Strong, reliable support for wall-mounted handrails
• Compatible with flat handrails (1"–2" width)
• Elegant satin brushed nickel finish
• Rust-resistant — suitable for indoor & outdoor use
• Easy DIY installation (30 minutes)
• Suitable for wood & metal handrails
• Sold individually

L Shape vs Square Bracket

The L-shape sits closer to the wall with a smaller visual footprint, and the round plate reads as softer. Our square bracket is the more architectural option and suits square and rectangular rails in modern interiors.

Both carry the same load. The choice is aesthetic.

What's Included

• L shape stainless bracket (sold individually)
• Stainless steel mounting hardware (for wall & handrail)
• Round cover plate (conceals screws for a clean finish)

Product Dimensions

• Width: 2.5"
• Height: 3"
• Projection: 3"
• Center-to-Center Projection: 2.5"

👉 Standard handrail height: 34" – 38" from floor

How Many Do You Need?

• 1 ft – 4 ft → 2 brackets
• 5 ft – 7 ft → 3 brackets
• 7.5 ft – 9 ft → 4 brackets
• 10 ft – 12 ft → 5 brackets
• 13 ft – 16 ft → 6 brackets
• 17 ft – 21 ft → 7 brackets
• 22 ft – 24 ft → 8 brackets

Keep spacing under 48" between brackets, and land them on studs wherever possible.

Shipping, Warranty & Guarantee

• ✓ Shipping calculated at checkout (free on orders over $99, lower 48; excludes HI & AK)
• ✓ Lead time: 2–3 weeks
• ✓ 30-Year Structural Warranty
• ✓ 30-day returns on standard products (20% restocking fee applies; custom orders are final sale)

Helpful Guides

• How many brackets do I need? — chart by length and stud spacing
• Building code requirements — heights and clearances

Built for Strength. Designed for Modern Living.

Handmade in Ventura, California to pair with our handrails.

Technical drawings are available upon request. Contact us for detailed specifications and measurements.

GUIDES & TIPS

• Measure twice - Confirm your railing length and step height before ordering.
• Surface prep - Ensure the mounting surface is clean, level, and structurally sound.
• Hardware - Lag bolts are included for wood surfaces. For concrete or brick, contact us for anchor bolts.
• Tools needed - Hammer drill with 3/8" masonry bit (concrete), impact drill with socket, small hammer.
• Touch-up paint - Included with every order for minor installation marks.

• Shipping: 3–5 business days in transit after fabrication
• Cost: Free on orders over $99 (lower 48, freight included). Orders under $99 are charged calculated rates shown at checkout.
• Hawaii & Alaska: Additional shipping charges apply
• Freight deliveries are curbside with no liftgate. Someone must be present to sign for the delivery.
